You can interact with this notebook online: Launch notebook
[1]:
from numba import config
#config.DISABLE_JIT = True
[2]:
from tardis.io.configuration.config_reader import Configuration
from tardis.workflows.type_iip_workflow import TypeIIPWorkflow
Initializing tabulator and plotly panel extensions for widgets to work
Auto-detected VSCode environment
Auto-detected VSCode environment
This notebook uses existing atomic data from the Vogl IIp paper converted to an updated format. It can be found on moria in /storage/group_storage/atom_data/iip_data/
[3]:
iip_conf = Configuration.from_yaml('iip_config.yml')
The config here is not particularly good or appropriate for a IIp currently. It is mostly to test a pure hydrogen ejecta with continuum processes and non-thermal equilibrium plasma calculations. None of the other values are necessarily appropriate to model a IIp.
MUST BE AT LEAST 2 SHELLS¶
[4]:
workflow = TypeIIPWorkflow(iip_conf)
[5]:
import matplotlib.pyplot as plt
import pandas as pd

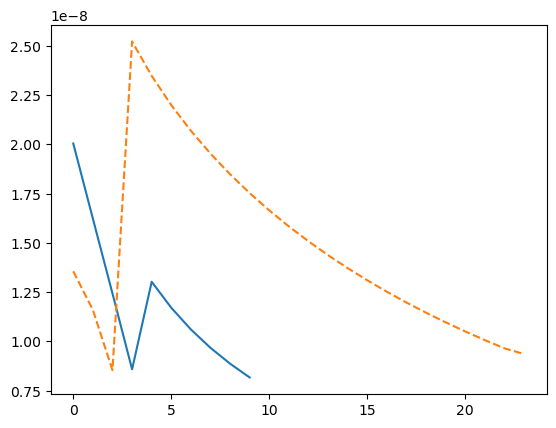

j_blues_ctardis = pd.read_csv(
"/home/afullard/tardis-chvogl-configs/j_blues_first.csv", index_col=0
)
plt.plot(workflow.plasma_solver.j_blues[0])
plt.plot(j_blues_ctardis.values[0], linestyle="dashed")
[5]:
[<matplotlib.lines.Line2D at 0x74dd8637d6d0>]
[6]:
workflow.run()
Solving opacity
First iteration use usual fb cooling rate
Solving Monte Carlo transport
Updating simulation
Solving plasma
Solving opacity
Solving Monte Carlo transport
Updating simulation
Solving plasma
Solving opacity
Solving Monte Carlo transport
Updating simulation
Solving plasma
Solving opacity
Solving Monte Carlo transport
Updating simulation
Solving plasma
[7]:
import matplotlib.pyplot as plt
spectrum = workflow.spectrum_solver.spectrum_real_packets
[8]:
%matplotlib inline
plt.figure(figsize=(10, 6.5))
spectrum.plot(label="Normal packets")
plt.xlim(500, 9000)
plt.title("TARDIS example model spectrum")
plt.xlabel(r"Wavelength [$\AA$]")
plt.ylabel(r"Luminosity density [erg/s/$\AA$]")
plt.legend()
plt.show()

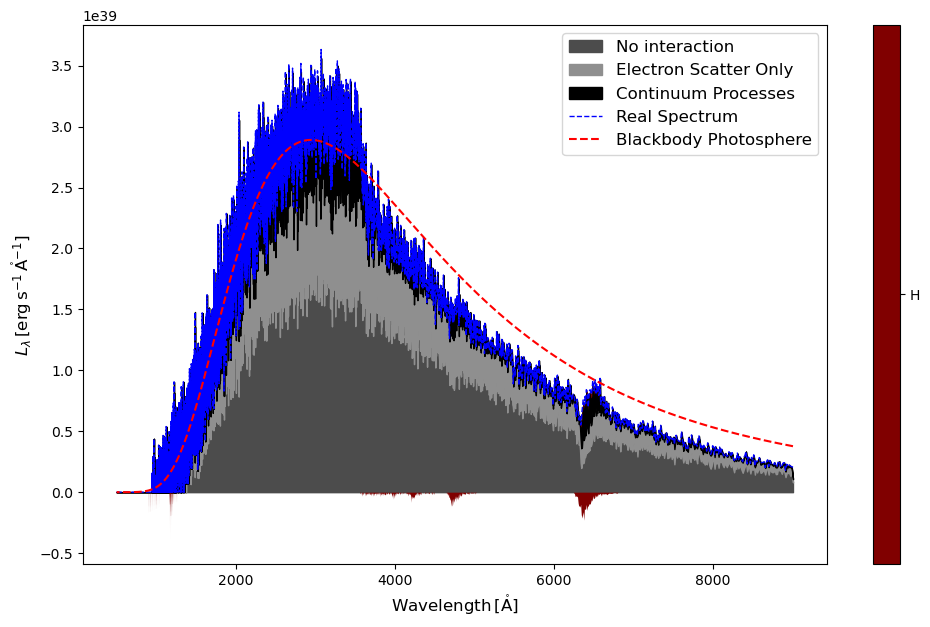

[9]:
from tardis.visualization import SDECPlotter
import astropy.units as u
plotter = SDECPlotter.from_workflow(workflow)
plotter.generate_plot_mpl(packets_mode="real", packet_wvl_range=[500, 9000] * u.AA)
[9]:
<Axes: xlabel='$\\text{Wavelength}\\,[\\mathrm{\\mathring{A}}]$', ylabel='$L_{\\lambda}\\,[\\mathrm{erg\\,s^{-1}\\,\\mathring{A}^{-1}}]$'>
[10]:
workflow.transport_state.tracker_last_interaction_df[workflow.transport_state.tracker_last_interaction_df["last_interaction_type"] == "CONTINUUM_PROCESS"]
[10]:
| event_id | last_interaction_type | status | radius | shell_id | before_nu | before_mu | before_energy | after_nu | after_mu | after_energy | line_absorb_id | line_emit_id | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| packet_id | |||||||||||||
| 2 | 12.0 | CONTINUUM_PROCESS | IN_PROCESS | 1.600751e+15 | 3 | 3.124369e+14 | -0.489532 | 0.000002 | 1.025662e+15 | 0.751245 | 0.000002 | -1 | -1 |
| 6 | 2.0 | CONTINUUM_PROCESS | IN_PROCESS | 1.398319e+15 | 0 | 8.548382e+14 | -0.128988 | 0.000002 | 8.734672e+14 | -0.557376 | 0.000002 | -1 | -1 |
| 22 | 2.0 | CONTINUUM_PROCESS | IN_PROCESS | 1.431680e+15 | 0 | 4.142404e+14 | -0.674727 | 0.000002 | 4.424209e+14 | -0.937859 | 0.000002 | -1 | -1 |
| 25 | 2.0 | CONTINUUM_PROCESS | IN_PROCESS | 1.463596e+15 | 1 | 2.562137e+14 | 0.540415 | 0.000002 | 9.269041e+14 | 0.665720 | 0.000002 | -1 | -1 |
| 35 | 1.0 | CONTINUUM_PROCESS | IN_PROCESS | 1.411122e+15 | 0 | 2.787898e+14 | 0.960644 | 0.000002 | 8.398528e+14 | -0.810407 | 0.000002 | -1 | -1 |
| ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
| 499962 | 2.0 | CONTINUUM_PROCESS | IN_PROCESS | 1.459952e+15 | 1 | 4.341381e+14 | 0.370708 | 0.000002 | 1.044356e+15 | 0.857608 | 0.000002 | -1 | -1 |
| 499971 | 1.0 | CONTINUUM_PROCESS | IN_PROCESS | 1.437563e+15 | 0 | 1.882949e+14 | 0.429626 | 0.000002 | 1.259660e+15 | -0.943433 | 0.000002 | -1 | -1 |
| 499972 | 1.0 | CONTINUUM_PROCESS | IN_PROCESS | 1.409404e+15 | 0 | 2.468562e+14 | 0.827173 | 0.000002 | 1.012108e+15 | -0.557570 | 0.000002 | -1 | -1 |
| 499975 | 2.0 | CONTINUUM_PROCESS | IN_PROCESS | 1.425646e+15 | 0 | 3.835769e+14 | 0.105933 | 0.000002 | 9.356927e+14 | 0.364530 | 0.000002 | -1 | -1 |
| 499986 | 1.0 | CONTINUUM_PROCESS | IN_PROCESS | 1.401034e+15 | 0 | 9.205980e+13 | 0.704195 | 0.000002 | 9.892475e+14 | 0.503802 | 0.000002 | -1 | -1 |
51725 rows × 13 columns
[11]:

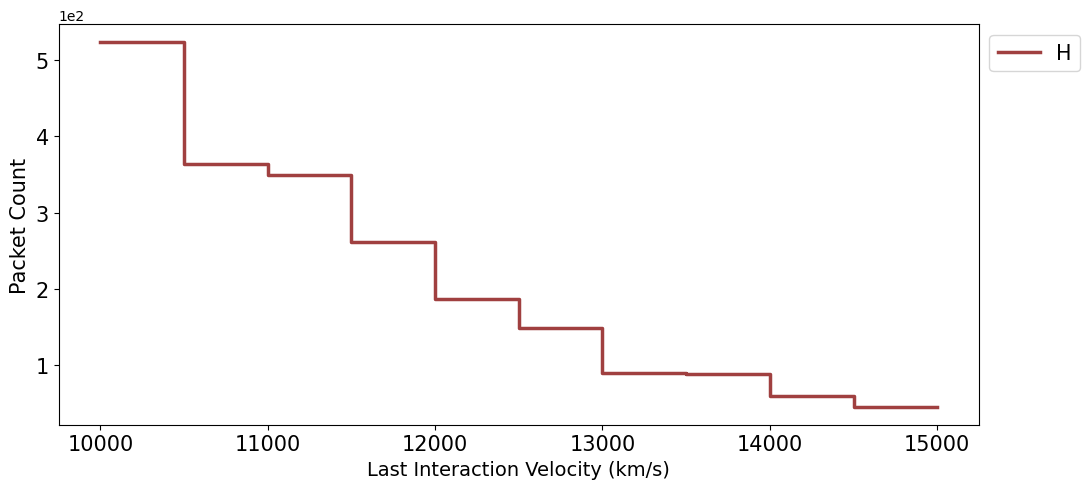

from tardis.visualization.tools.liv_plot import LIVPlotter
[12]:
plotter = LIVPlotter.from_workflow(workflow)
plotter.generate_plot_mpl(packets_mode="real")
[12]:
<Axes: xlabel='Last Interaction Velocity (km/s)', ylabel='Packet Count'>
[ ]:
